JWT Token Validation with Microsoft's Azure AD

Membrane API Gateway can validate JWTs issued by Microsoft's Azure AD. Based on the result of the validation a request is passed to a backend service or rejected. This tutorial shows step by step how to setup Azure AD and Membrane for JWT validation.

Overview

An API protection flow is shown in the picture below. Membrane is placed before the backend and allows only requests with valid tokens to go through.

Overview

The flow of requests is as follows:

  1. The client retrieves the token from Azure AD.
  2. The JWT is issued by Azure AD and returned to the client.
  3. The client then accesses the backend throughMembrane API Gateway.

Membrane API Gateway exposes the backend e.g. to the hostile internet. Only requests with a valid JWT are allowed to pass.

Azure AD Setup

Both the client and the backend are registered in Azure AD with an App registration. Don't get confused. ;)

1. Register the Backend

  1. Open https://aad.portal.azure.com/#view/Microsoft_AAD_IAM/ActiveDirectoryMenuBlade/~/Overview
  2. Sign in, if necessary.
  3. Take note of your Tenant ID. (Format should be 44xxxxx6-xxxx-xxxx-xxxx-bxxxxxxxxx51)

  4. Open: https://aad.portal.azure.com/#view/Microsoft_AAD_IAM/ActiveDirectoryMenuBlade/~/RegisteredApps

  5. Choose New registration.
  6. Enter a name (e.g. Demo Backend) and click Register.

    Backend Registration

  7. Next to Application ID URI, click on Add an Application ID URI.

  8. Next to Application ID URI, click on Set.
  9. Click on Save.
  10. Take note of your Application ID URI. (Format should be api://2axxxx16-xxxx-xxxx-xxxx-faxxxxxxxxf0.)
  11. Go to App roles.
  12. Click on Create app role.
  13. Enter ReadWrite into the Display name, Value and Description fields.
  14. Choose Both (Users/Groups + Applications) as Allowed member type*.
  15. Click on Apply.

2. Get a valid token

There are several possibilities of getting a valid token. For this demo, we use the OAuth 2.0 client credentials flow. (This is an example of the Access without a user scenario described on https://learn.microsoft.com/en-us/azure/active-directory/develop/permissions-consent-overview.)

2.a. Register your client

  1. Open https://aad.portal.azure.com/#view/Microsoft_AAD_IAM/ActiveDirectoryMenuBlade/~/RegisteredApps.
  2. Choose New registration.
  3. Enter a name (e.g. Demo Client) and click Register.

    Client Registration

  4. Take note of your Application (client) ID.

  5. Next to Client credentials, click on Add a certificate or secret.
  6. Click on New client secret.

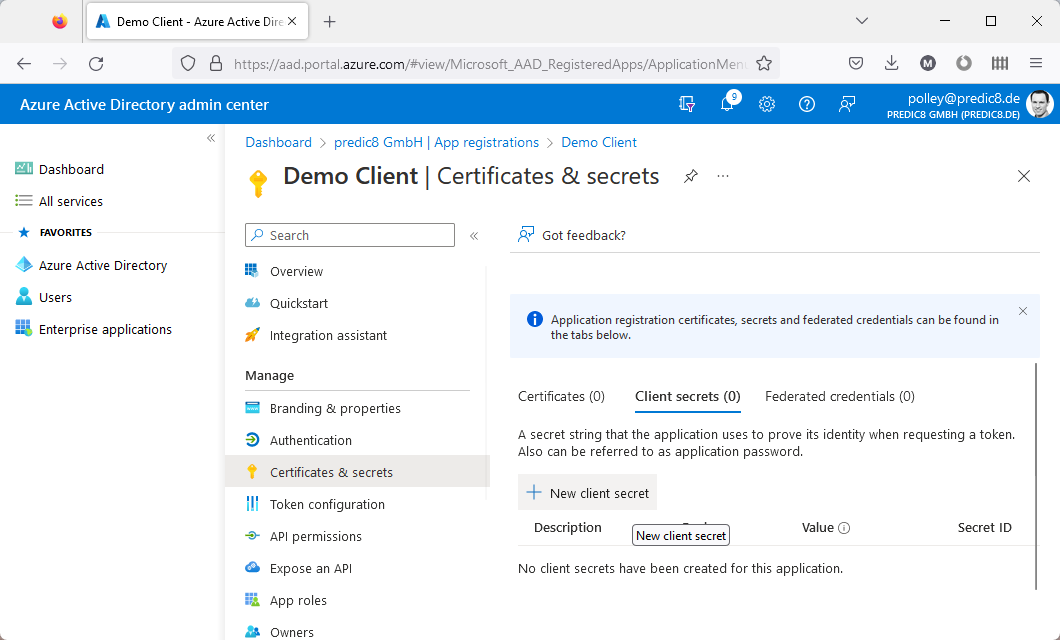

    Creating a new client secret

  7. Enter Demo Secret as Description.
  8. Click on Add.
  9. Take note of the Value, also known as the client secret.
  10. Click on API permissions.
  11. Click on Add a permission.

    Adding a permission

  12. In the Request API permissions window, click on the tab My APIs and choose Demo Backend.

    Adding a permission

  13. Select the ReadWrite permission.

    Adding a permission

  14. Click on Add permission.

2.b. Get a token

Replace the values in the curl command below according to the table.

replaceby
7fxxxxx1-xxxx-xxxx-xxxx-
6xxxxxxxxx1b
the Application(client) ID (see section 2.a.)
Dlxxx~xxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxc1f
the client secret (see section 2.a.)
2axxxx16-xxxx-xxxx-xxxx-faxxxxxxxxf0your backend's Application ID URI (see section 1.)
44xxxxx6-xxxx-xxxx-xxxx-bxxxxxxxxx51the tenant ID (see section 1.)

curl -o token.json -d "grant_type=client_credentials&client_id=7fxxxxx1-xxxx-xxxx-xxxx-6xxxxxxxxx1b&client_secret=Dlxxx~xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxc1f&scope=api://2axxxx16-xxxx-xxxx-xxxx-faxxxxxxxxf0/.default" "https://login.microsoftonline.com/44xxxxx6-xxxx-xxxx-xxxx-bxxxxxxxxx51/oauth2/v2.0/token" -v

and execute it. curl saves the token in the file token.json.

Look at token.json and extract the token from the field access_token. (Format should be similar to ey...J9.ey...fQ.....)

Azure AD Token Validation using Membrane API Gateway

Now the token can be used to authenticate against an API running on Membrane.

Start Membrane

  1. Open the proxies.xml file in the examples/oauth2/azure-ad-with-jwts directory of your Membrane distribution.
  2. Take a look at the following section:

    <jwtAuth expectedAud="api://2axxxx16-xxxx-xxxx-xxxx-faxxxxxxxxf0">
        <jwks jwksUris="https://login.microsoftonline.com/common/discovery/keys"/>
    </jwtAuth>

    This allows only HTTP requests which include valid JWT tokens to pass.

  3. Replace 2axxxx16-xxxx-xxxx-xxxx-faxxxxxxxxf0 by your backend's Application ID URI (see section 1.)

  4. Open a console in the same directory.
  5. Execute service-proxy.bat or service-proxy.sh in the console.

Token Validation

In the ''curl'' command below,

replaceby
ey...J9.ey...fQ....the token

curl -H "Authorization: Bearer ey...J9.ey...fQ.DL...hQ" http://localhost:8080/

and execute it.

You should be greeted by a message like

Hello there, d5xxxxx2-xxxx-xxxx-xxxx-fxxxxxxxxx7e.

This is the OID of the subject (=owner) of the token, which was assigned to the Demo Client. (See also https://learn.microsoft.com/de-de/azure/active-directory/develop/id-tokens.)

The greeting, including the OID, was issued as specified in proxies.xml.
